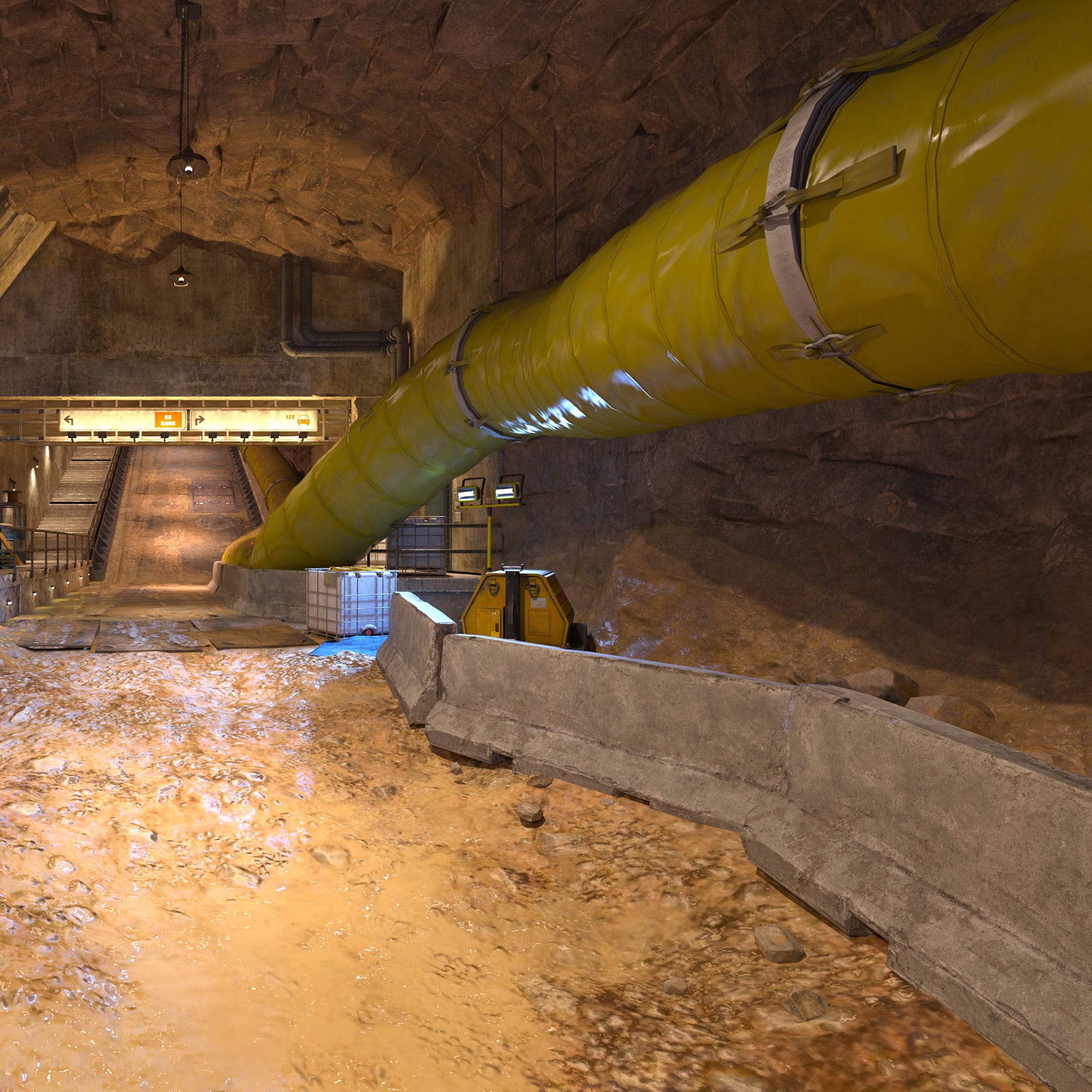

FRAS700 is a premium PVC-coated polyester fabric engineered for demanding environments such as mining, where fire retardant and anti-static properties are essential. Designed for durability and safety, this fabric offers exceptional performance in applications like ventilation ducts and other critical mining operations.

With a nominal weight of 700gsm, FRAS700 combines strength with reliability. It features a matte finish, UV stabilization, and anti-static properties, ensuring long-lasting protection and compliance with stringent industry standards. Supplied in rolls 256cm wide and 50m long, it provides flexibility for large-scale installations.

FRAS700 meets the fire resistance, electrical resistance, anti-static, and air permeability requirements outlined in MDG3608, making it a trusted choice for safety-critical environments.

Mode Textures
Mode Privacy
Mode Zero
Outlook Zero Stripes
Outlook Designs
UV Stabilised

FRAS700 is UV stabilised, preventing fading under intense UV rays

Fire Retardant

FRAS700 is fire retardant which means the fabrics are designed for commercial environments. Test results available by request.


Technical Specifications

Roll Length 50m
Roll Width 256cm
Nominal Weight 700gsm
Base Fabric Woven 1300dtex polyester
Fabric Type PVC laminated polyester
Fabric Density 12 x 12 threads per cm
Thickness 0.54mm
Finish Matte
Tensile Strength (AS2001.2.3.1-2001) Warp: 2100N/50mm Weft: 2000N/50mm
Breaking Strength Warp: 350N Weft: 300N
