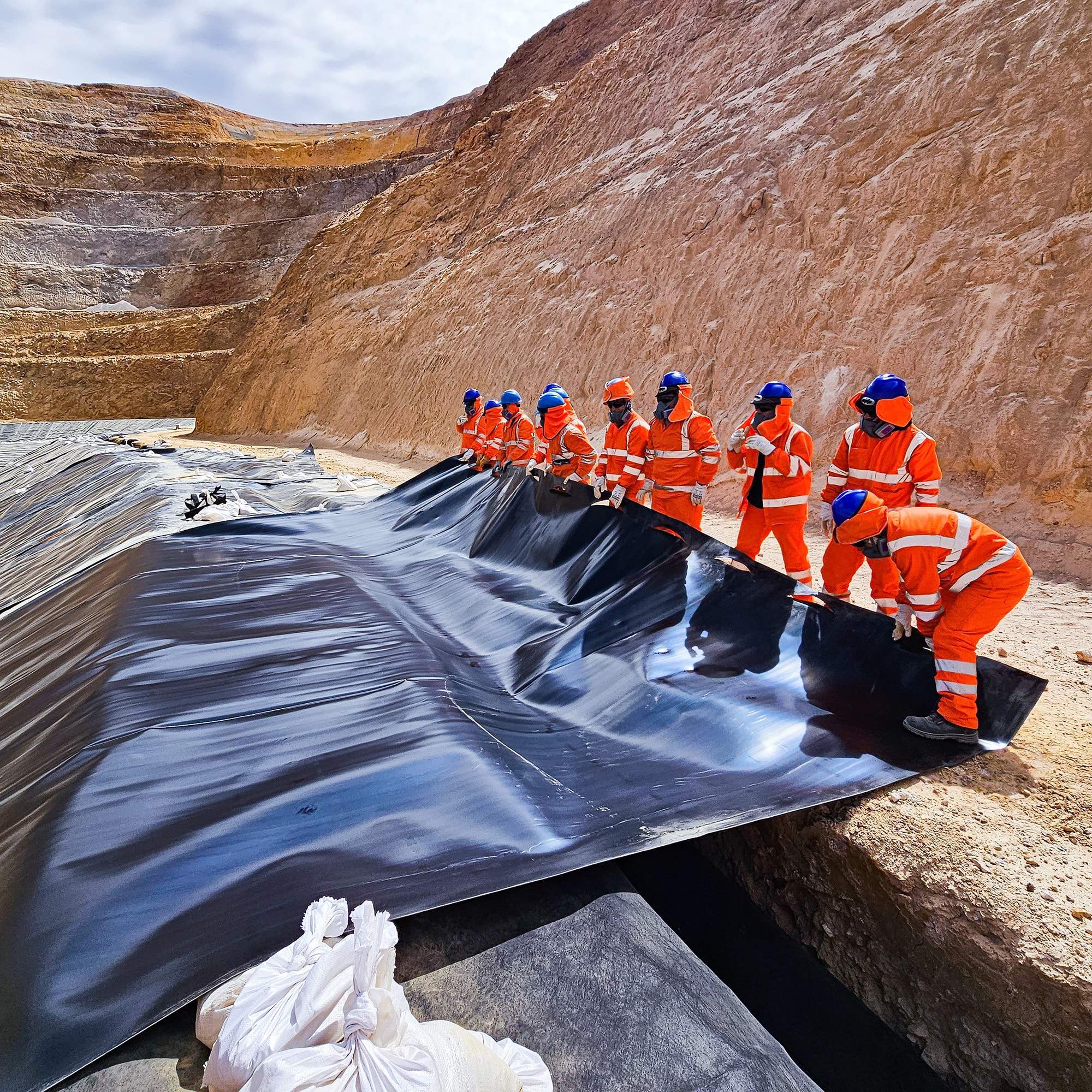

E1510 Elvaloy is a high-performance environmental geomembrane engineered for superior protection in demanding conditions. Designed with exceptional chemical resistance, outstanding UV stability, and minimal thermal expansion and contraction, this fabric ensures long-term reliability in critical applications. Its extreme puncture and tear resistance make it the ideal choice for geomembranes and liners where durability and safety are paramount.

Constructed from a robust polyester base reinforced with PVC-Elvaloy, E1510 offers a thickness of 0.90mm and a nominal weight of 1000gsm. The warp and weft are made from 1000 dtex polyester, delivering unmatched strength and dimensional stability. Supplied in rolls 250cm wide and 50m long, E1510 provides efficiency and resilience for large-scale projects.

E1510 Elvaloy sets the standard for geomembrane solutions, combining environmental performance with extreme durability.

Mode Textures
Mode Privacy
Mode Zero
Outlook Zero Stripes
Outlook Designs

Technical Specifications

Roll Length 50m
Roll Width 250cm
Nominal Weight 1000gsm
Thickness 0.90mm
Base Fabric Warp: Polyester 1000 dtex Weft: Polyester 1000 dtex
Fabric Type Polyester + PVC-EL
Breaking Strength (Strip method) (ASTM D751) Warp: 3500 N Weft: 3500 N
Tear Strength (Tongue tear) (ASTM D751) Warp: 500N Weft: 400N
Adhesion (Film tearing 2”/min) (ASTM D413) 130 N/50mm
Temperature Resistance (4HRS-1/8” Mandrel) (ASTM D2136) -35o C / -30oF no cracking
E1510 Elvaloy Retail Flyer
E1510 Elvaloy Technical Textile Datasheet
